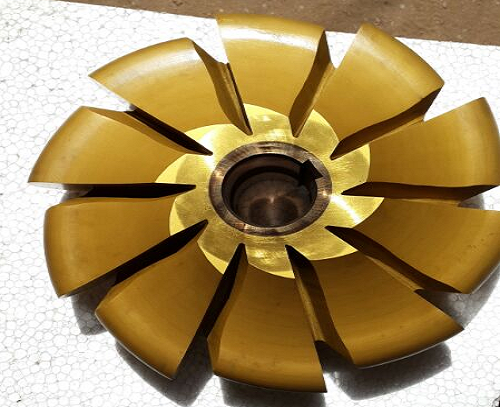

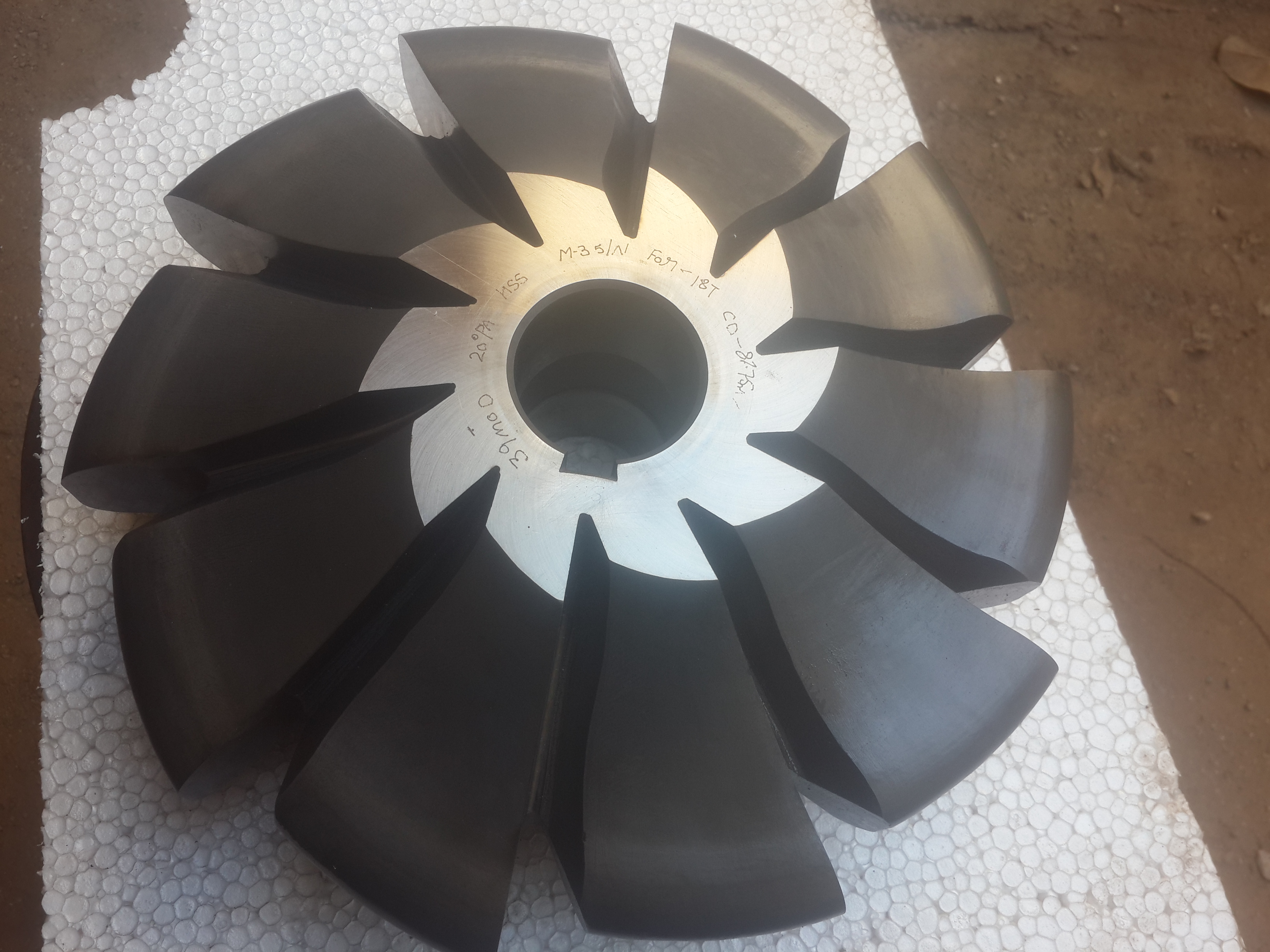

The simplest precision tool to cut any spur, bevel or helical gears is Involute gear cutters which are the oldest and most common gear cutters. These Involute gear cutters cut range of gear of whole racks as per the number of teeth to cut. Gears can be cut at any ordinary gear milling machine by these involute cutters since they have the simplest cutting process and it is the most common gear cutting process around the whole world.
Since these gear involute cutters are very cost effective & durable, gear teeth are cut one by one on the gear milling machines for roughing and finishing purpose. Involute gear Form relieved cutters are produced as per DIN, BS, ASME, IS Standards.
These involute gear cutters comes in set of 8 pcs as per the number of teeth to cut for whole gear rack as below
MILLING CUTTERS RANGE
- For spur gears with a 14-1/2° or 20° pressure angle
- Form relieved to allow re-sharpening many times without changing the form
- 8 cutters are made for each pitch
Range of Cutters for Diametric pitch
| Range of Cutters for Involute gear cutters |
| Cutter Number |
Cuts Gear from |
| 1 |
135 teeth to rack |
| 2 |
55-134 |
| 3 |
35-54 |
| 4 |
26-34 |
| 5 |
21-25 |
| 6 |
17-20 |
| 7 |
14-16 |
| 8 |
12-13 |
Range of Cutters for metric module gear cutters
| Cutter Number |
Cuts Gear tooth range |
| 1 |
12-13 |
| 2 |
14-16 |
| 3 |
17-20 |
| 4 |
21-25 |
| 5 |
26-34 |
| 6 |
35-54 |
| 7 |
55-134 |
| 8 |
135- |
Basic Parameters
| Range – |
0.20 module to 49 module & 64 DP to 0.50 DP |
| Accuracy - |
Machine Form relieved & Ground relieved profile in Class A, B, C (as per DIN 3968 or equivalent AGMA, JIS standard) with all standard & non-standard profiles |
| Material - |
M-2, M35, T42, ASP 2030 etc. |
| SURFACE COATING - |
Available in TiN, TiCN, ALTIN, ALCRONA Coatings |
INVOLUTE GEAR CUTTERS
SPLINE MILLING GEAR CUTTERS
SPROCKET MILLING GEAR CUTTERS
Available in Machine Form relieved & Ground relieved profile in Class A, B, C. These milling cutters are available in a set of 8 different form cutters from No.1 to 8 to cut any number of teeth (Z = 10 TO 135+) in gears from 0.25 module to 49 module & 0.75 DP to 64 DP with conforming standards to BS, IS, DIN.
