BROACHES
Yash International produces all types of Broaching tools Serving various industries including; Automotive, Agriculture, Hand Tool, Marine, Wind Power, Textile. Our production facility has access to various broaching machines capable of any size, diameter and stroke length that are available for rapid tool-ups in order to meet your contract broaching requirements. In Broaching, the tool has a major influence on the surface finished achieved, the tolerances, the life of the tool and in short, on the economy of the entire process. The design of broaching tool will depend on the material, the shape and the quantities of the component that are to be broached.
Accuracy: As per DIN, SES, ANSI B92.1, BIS and other related standards.

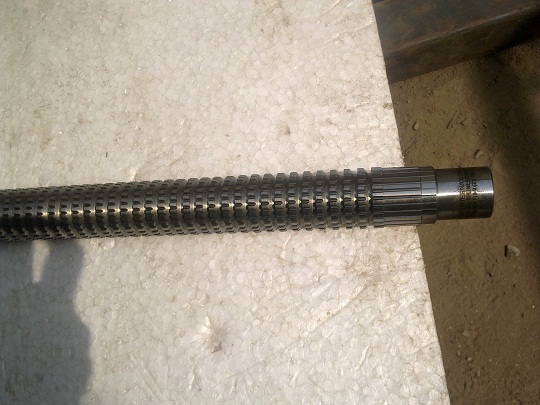

ROUND BROACHES
Round broach tool produces a circular hole on the desired material with accuracy and ease. They are intended to produce in one-pass accuracy Round gap in a formerly cast, penetrated or reamed round gap. These Internal Hole Broaches are perfect for exact resistances, measuring, and complete for those applications requesting exactness and wrap up. Our round broach tools are durable and non-corrosive because they are manufactured from high-quality raw materials(HSS).
Basic Parameters-
| Type: | Push or Pull type |
| Splines Profile Range | Straight, Involute, parallel |
| SURFACE COATING | Available in TiN, TiCN, ALTIN, ALCRONA Coatings |
| MATERIAL | M2, M35, ASP 30 etc |

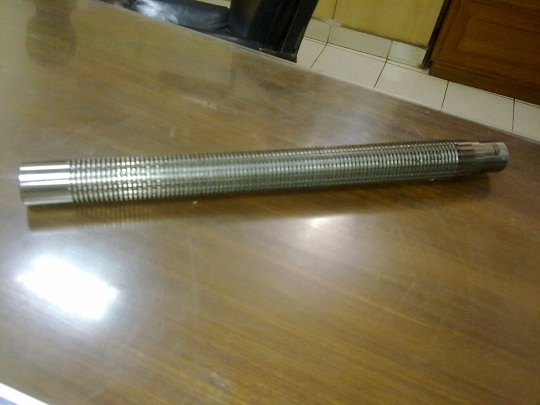

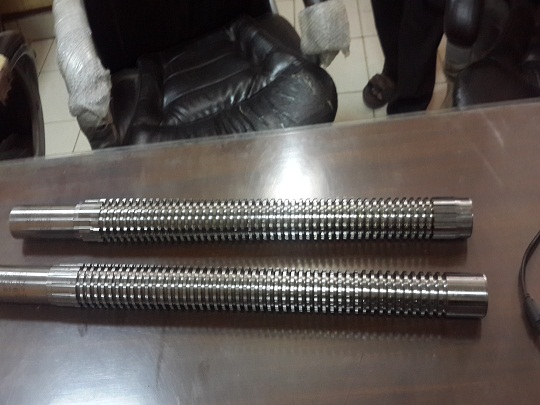

SPLINE BROACHES – INVOLUTE/ STRAIGHT / HEXAGONAL/ SQUARE
These broaches generate the splines by the top of the tooth & by cutting splines to finish hole in the component. Involute splines, straight splines & Serrations splines can be specified shaped. We manufacture durable straight spline broaches used to form splines with teeth of straight or angular lines. A thorough inspection of each straight spline broach is carried out at every stage to maintain consistency and quality. The design of broaches is being done by taking in consideration the back taper required for finishing and satisfactory life of tool. The Involute Spline Broach is ideally designed to be used to produce internal Involute profile. .
Basic Parameters-
| Type: | Push or Pull type |
| Splines Profile Range | Involute, parallel, Round, Square, Hexagonal, Form, Serration, Rectangle, Trapezoidal |
| SURFACE COATING | Available in TiN, TiCN, ALTIN, ALCRONA Coatings |
| MATERIAL | M2, M35, ASP 30 etc |

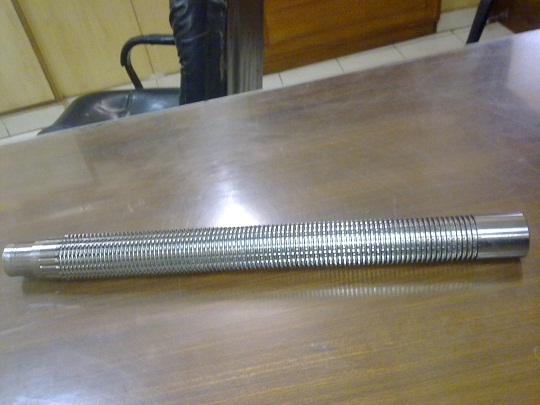

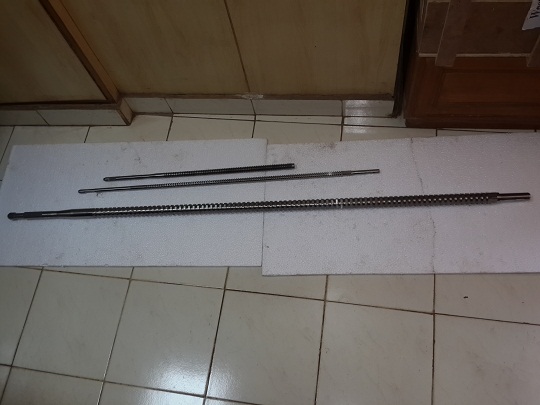

SERRATION BROACHES
Straight Serration Broach is a tool that is used to produce straight-sided V-Groove profile, equally spaced in an inner circular periphery from a prebore hole of the component. The company is well renowned as one of the leading Broach Exporters in India. Push & Push Type Serration Broach offered by us is non-corrosive in nature that assures long lasting life.
Widely Used In Aerospace Industries, Scooter Parts, Motorcycle Parts, Steering Wheels, Automobiles sector

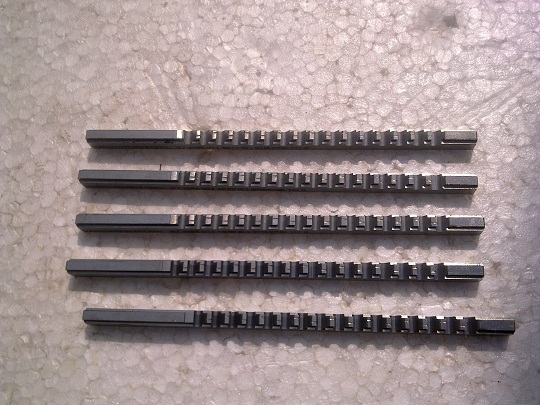

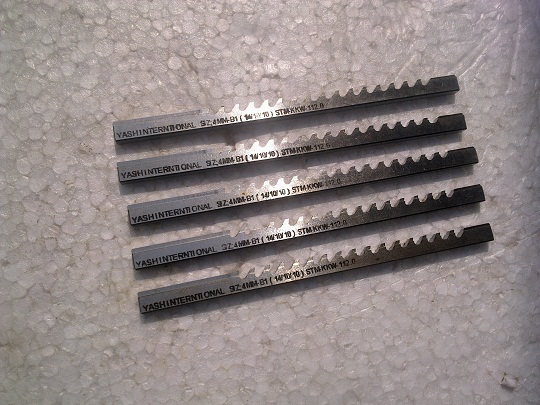

KEYWAY BROACHES
Keyway broaches can also be designed to provide specific chamfer at the corner of the base thus avoiding filing. We manufacture quality keyway broach (with or without chamfer). A Our keyway broach cuts keyways with ease in the bore of a gear or wheel. Keyway broach set is available in different dimensions to meet our customer’s needs.
We offer superior quality Keyway Broaches that are available in push as well as pull variants. Our Keyway Broach is ideally suited for making inside slot on inside taper or straight bore.
Basic Parameters-
| Type: | Push or Pull type |
| SURFACE COATING | Available in TiN, TiCN, ALTIN, ALCRONA Coatings |
| MATERIAL | M2, M35, ASP 30 etc |

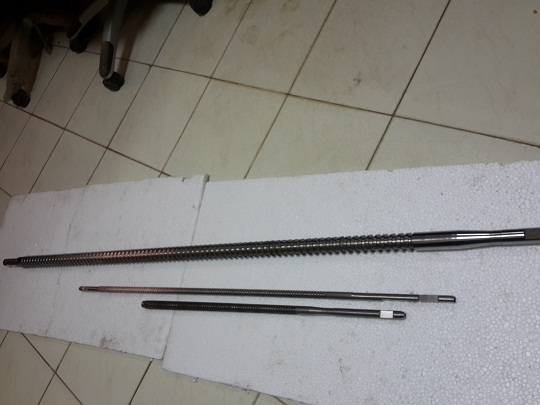

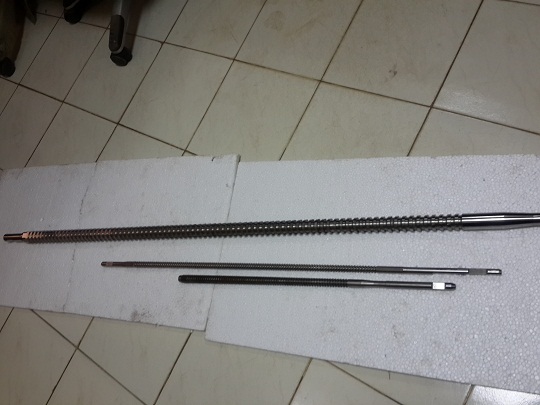

SURFACE/COMBINATION BROACHES
Surface broaches are available for broaching flat surfaces, irregular surfaces, external forms, concave or convex surface, serrations, cam shaped, corner squaring and dovetails. These are used to machine the exterior part of the component. Combination Broaches are used for finishing sizes when the regular broach is gone under size and still the sharpening life is available. This type of broaches are used where two or more matching operations are required.
| Type | Push or Pull type |
| Profile Range: | Keyway, Bore cum keyway, Combination Broaches |
| Features | With or without chamfer, concave or convex surface, deburring for one pass operation |
| SURFACE COATING | Available in TiN, TiCN, ALTIN, ALCRONA Coatings |
| MATERIAL | M2, M35, ASP 30 etc |
